Beskrivning

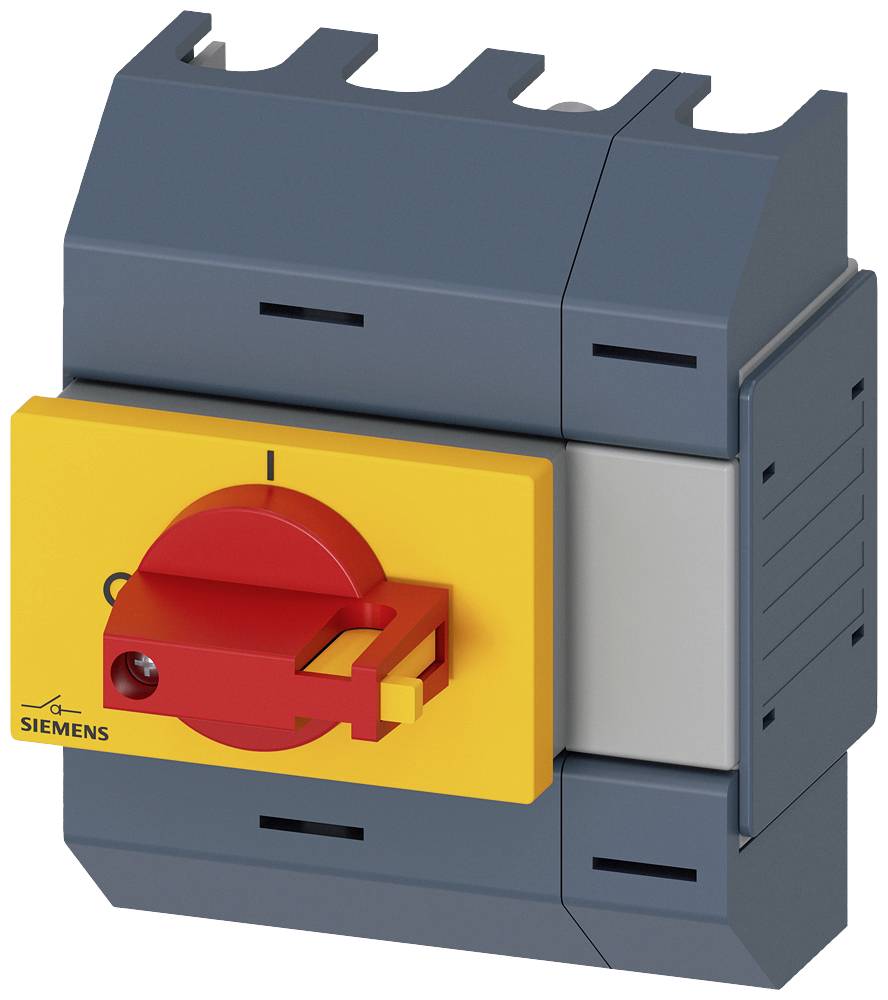

Lastfrånskiljare 32A, Bygggr. 01, 4-polig framhjulsdrift komplett enhet med direktdrivning röd/gul ramklämma

Lastfrånskiljare 32A, Bygggr. 01, 4-polig framhjulsdrift komplett enhet med direktdrivning röd/gul ramklämma

Typ av produkt

Lastströmbrytare

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated permanent current Iu

32

Number of poles

4

Degree of protection (IP), front side

IP10

Number of auxiliary contacts as change-over contact

0

Number of switches

1

Interlockable

TRUE

Motor drive integrated

FALSE

Type of electrical connection of main circuit

Frame clamp

Version as emergency stop installation

TRUE

Type of control element

Short rotary handle

Version as main switch

TRUE

Version as safety switch

TRUE

Version as maintenance-/service switch

TRUE

Rated operation power at AC-23, 400 V

15

Rated short-time withstand current lcw

1.26

Colour control element

Other

Suitable for floor mounting

TRUE

Suitable for front mounting 4-hole

FALSE

Suitable for front mounting centre

FALSE

Max. rated operation voltage Ue AC

690

Motor drive optional

FALSE

Voltage release optional

FALSE

Rated permanent current at AC-21, 400 V

32

Version as reversing switch

FALSE

Rated permanent current at AC-23, 400 V

32

Degree of protection (NEMA)

Other
