Beskrivning

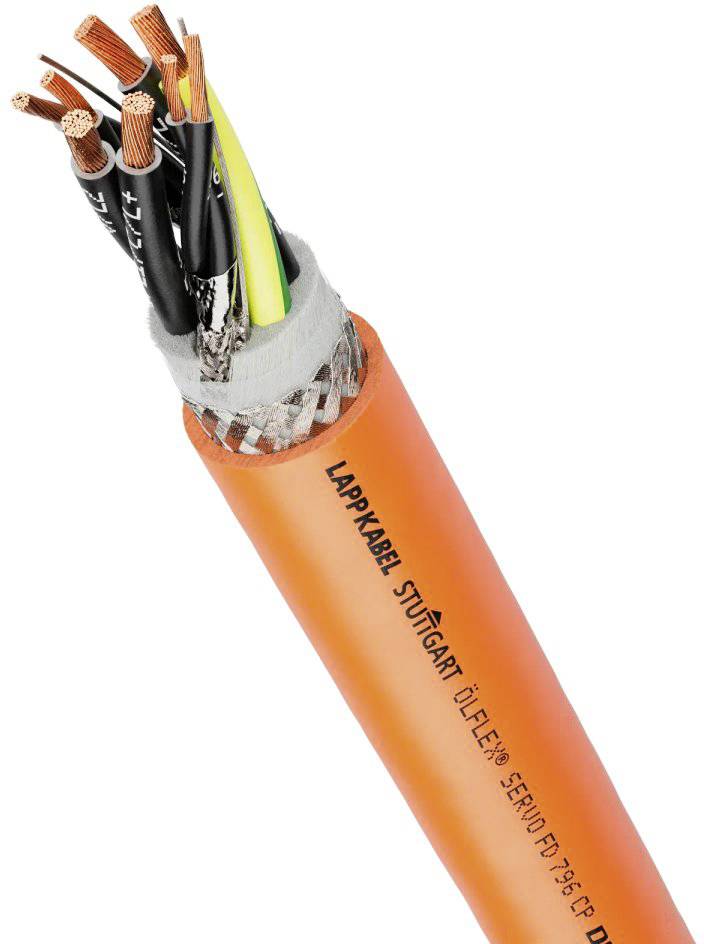

ÖLFLEX® SERVO FD 796 CP 4G2,5+ (2×0,5) servokabel; 4G2,5+ (2×0,5); Extended-Line; U0/U: 0,6/1 kV; PUR; skärmad; UL recognized; Törjkedja
ÖLFLEX® SERVO FD 796 CP 4G2,5+ (2×0,5) servokabel; 4G2,5+ (2×0,5); Extended-Line; U0/U: 0,6/1 kV; PUR; skärmad; UL recognized; Törjkedja
- Innehåll
- 1000
- Kabelarea
- 4 x 2.5 mm²
- Tvärsnitt (per tråd)
- 2.5
- Tillverkarnr.
- 0027927/1000
- Typ
- ÖLFLEX® SERVO FD 796 CP 4G2,5+(2×0,5)
- Nominell spänning
- 1000
- Ytter-Ø
- 12.6
- Nominell spänning U0
- 600
- Antal trådar
- 4
- Nominal cross section conductor
- 2.5
- Material core insulation
- Other
- Nominal voltage U
- 1
- Colour outer sheath
- Orange
- Conductor material
- Copper
- Material outer sheath
- Polyurethane (PUR)
- Conductor category
- Class 6 = very flexible
- Permitted cable outer temperature after assembling without vibration
- -50-90
- Nominal voltage U0
- 0.6
- Number of cores
- 4
- Outer diameter approximate
- 12.6
- With protective conductor
- TRUE
- Low smoke (according to EN 61034-2)
- FALSE
- Halogen free according to EN 60754-1/2
- FALSE
- Oil resistant according to EN IEC 60811-404
- FALSE
- Conductor surface
- Bare
- AWG size
- 14
- Min. permitted bending radius, moving application with forced guidance
- 94.5
- Min. permitted bending radius, moving application/free movement
- 94.5
- Min. permitted bending radius, stationary application/permanent installation
- 50.4
- Specification core insulation
- Polypropylene (PP)
- Specification material outer sheath
- Other
- Cable geometry
- Round
- Core identification according to HD 308 S2
- FALSE
- Typ av produkt
- Servokabel
