Beskrivning

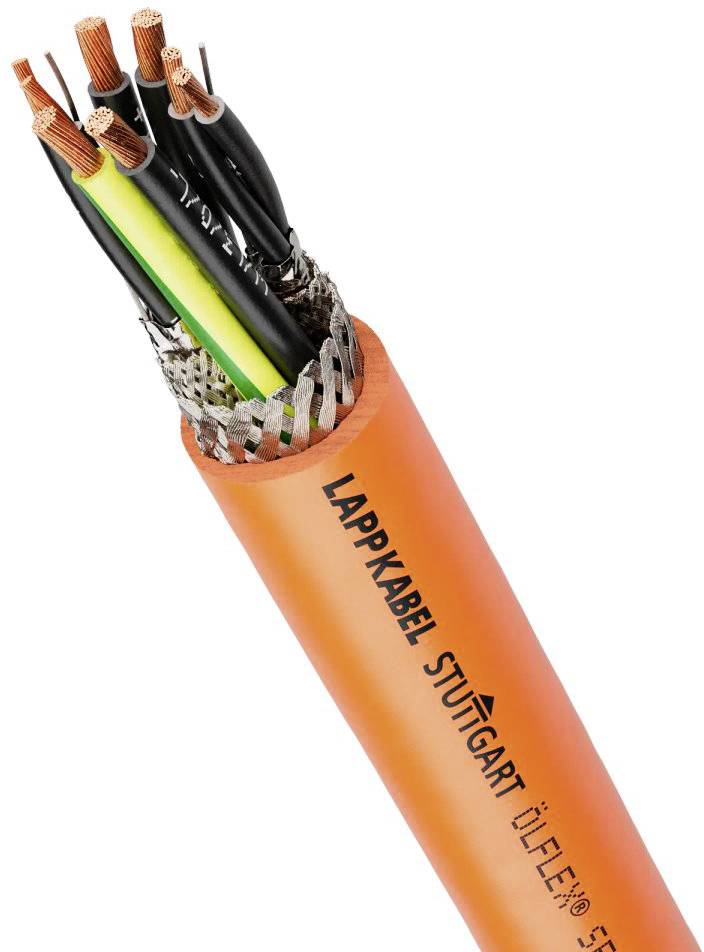

ÖLFLEX® SERVO 719 CY 4G10 servokabel; 4G10; U0/U: 0,6/1 kV; PVC; skärmad; UL recognized; flexibel
ÖLFLEX® SERVO 719 CY 4G10 servokabel; 4G10; U0/U: 0,6/1 kV; PVC; skärmad; UL recognized; flexibel
- Innehåll
- 1000
- Kabelarea
- 4 x 10 mm²
- Tvärsnitt (per tråd)
- 10
- Tillverkarnr.
- 1020014/1000
- Typ
- ÖLFLEX® SERVO 719 CY 4G10
- Nominell spänning
- 1000
- Ytter-Ø
- 16.7
- Nominell spänning U0
- 600
- Antal trådar
- 4
- Nominal cross section conductor
- 10
- Material core insulation
- Other
- Core identification
- Other
- Nominal voltage U
- 1
- Colour outer sheath
- Orange
- Conductor material
- Copper
- Material outer sheath
- Polyvinyl chloride (PVC)
- Conductor category
- Class 5 = flexible
- Nominal voltage U0
- 0.6
- Number of cores
- 4
- Outer diameter approximate
- 16.7
- With protective conductor
- TRUE
- Low smoke (according to EN 61034-2)
- FALSE
- Conductor surface
- Bare
- Min. permitted bending radius, moving application/free movement
- 250.5
- Min. permitted bending radius, stationary application/permanent installation
- 100.2
- Specification core insulation
- Polypropylene (PP)
- Specification material outer sheath
- Other
- Cable geometry
- Round
- Core identification according to HD 308 S2
- FALSE
- Typ av produkt
- Servokabel
