Beskrivning

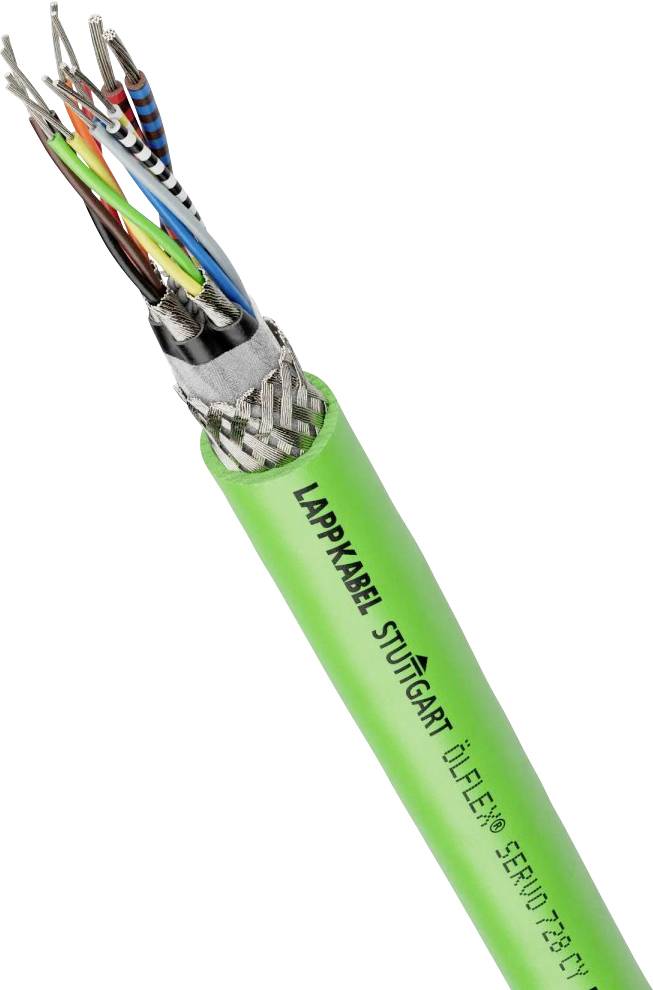

ÖLFLEX® SERVO 728 CY 3x (2×0,14) + (2×0,5) givarledning; (3x2x0,14) + (2×0,5); 30 V; PVC; UL recognized; flexibel
ÖLFLEX® SERVO 728 CY 3x (2×0,14) + (2×0,5) givarledning; (3x2x0,14) + (2×0,5); 30 V; PVC; UL recognized; flexibel
- Innehåll
- 500
- Kabelarea
- 0.5 mm²
- Tvärsnitt (per tråd)
- 0.5
- Tillverkarnr.
- 1020136/500
- Typ
- ÖLFLEX® SERVO 728 CY 3x(2×0,14)+(2×0,5)
- Nominell spänning
- 30
- Ytter-Ø
- 9.3
- Nominal cross section conductor
- 0.5
- Core identification
- Colour
- Nominal voltage U
- 30
- Colour outer sheath
- Green
- Conductor material
- Copper
- Material outer sheath
- Polyvinyl chloride (PVC)
- Outer diameter approximate
- 9.3
- With protective conductor
- FALSE
- Conductor surface
- Tinned
- AWG size
- Other
- Min. permitted bending radius, moving application/free movement
- 139.5
- Min. permitted bending radius, stationary application/permanent installation
- 55.8
- Specification core insulation
- Polypropylene (PP)
- Specification material outer sheath
- Other
- Cable geometry
- Round
- Typ av produkt
- Givarkabel
