Beskrivning

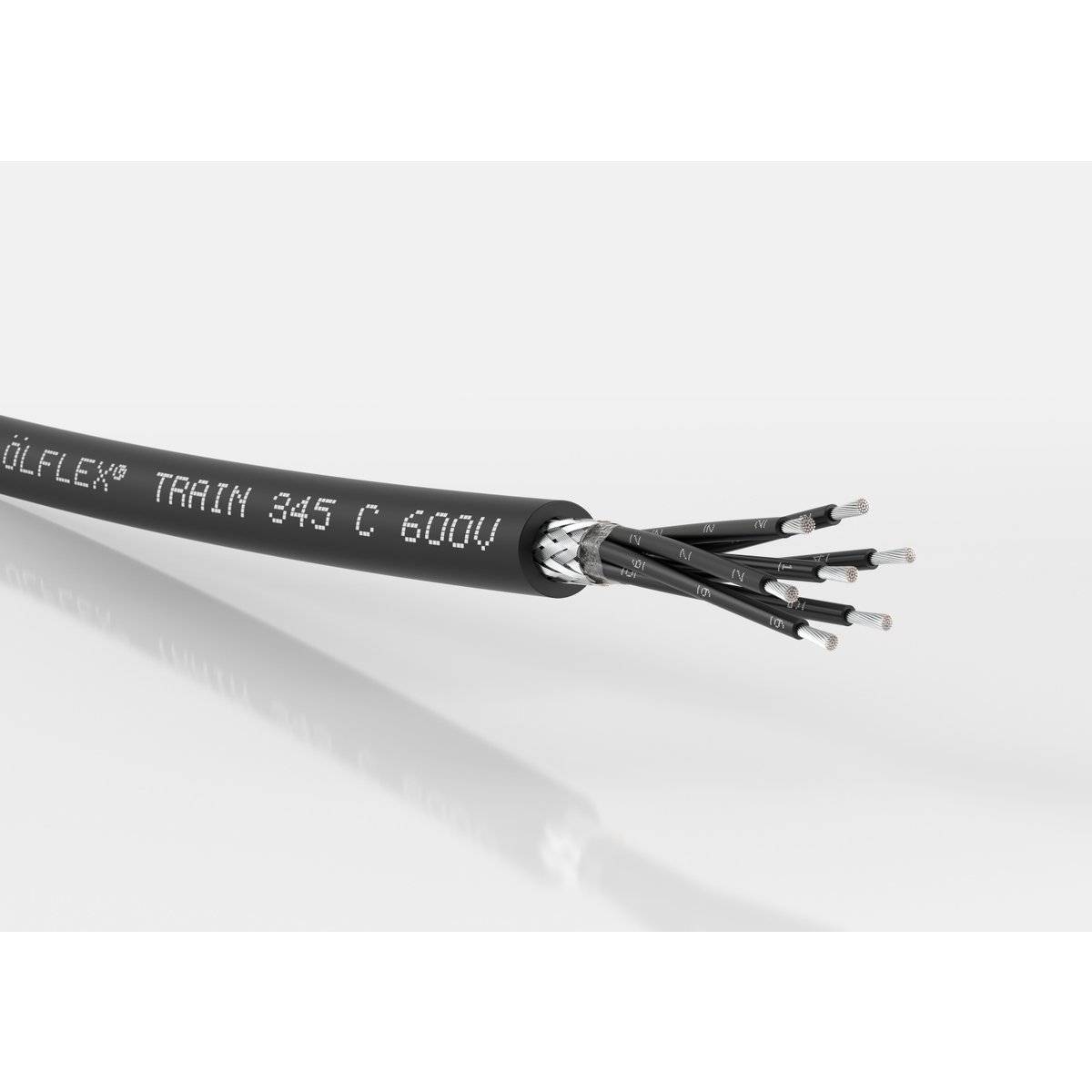

ÖLFLEX® TRAIN 345 C 600V 2X10 järnvägsledning; 2X10; en 50264-3-2; typ MM s; U 0 /U 0,6/1 kV; -45 – 120 °C; elektronisk strålningstvärbunden polymer-förening; skärmad
ÖLFLEX® TRAIN 345 C 600V 2X10 järnvägsledning; 2X10; en 50264-3-2; typ MM s; U 0 /U 0,6/1 kV; -45 – 120 °C; elektronisk strålningstvärbunden polymer-förening; skärmad
- Typ av produkt
- Järnvägsledning
- Kabeltyp
- MM S
- Antal trådar
- 2
- Tvärsnitt (per tråd)
- 10
- Tvärsnitt (per tråd (del 2)
- 10
- Kabelarea
- 2 x 10 mm² + 10 mm²
- Kabel – specifikationer
- Platt utförande
- Ytter-Ø
- 14.2
- Innehåll
- 500
- Nominell spänning
- 1000
- Nominell spänning U0
- 600
- Tillverkarnr.
- 15345012/500
- Temperaturområde, fastställt (min.)
- -45
- Temperaturområde, fastställt (max.)
- 120
- Max. Leveransmängd i ett stycke
- 500
- Typ
- ÖLFLEX® TRAIN 345 C 600V 2X10
- Nominal cross section conductor
- 10
- Material core insulation
- Other
- Core identification
- Numbers
- Nominal voltage U
- 1
- Colour outer sheath
- Black
- Conductor material
- Copper
- Material outer sheath
- Other
- Conductor category
- Class 5 = flexible
- Permitted cable outer temperature after assembling without vibration
- -45-120
- Nominal voltage U0
- 0.6
- Screen
- TRUE
- Number of cores
- 2
- Halogen free according to EN IEC 60754-2
- FALSE
- Low smoke according to EN IEC 61034-2
- TRUE
- Outer diameter approximate
- 14.2
- With protective conductor
- FALSE
- Low smoke (according to EN 61034-2)
- TRUE
- Conductor surface
- Tinned
- Min. permitted bending radius, stationary application/permanent installation
- 85.2
- Specification core insulation
- Other
- Specification material outer sheath
- Other
- Cable geometry
- Round
- Core identification according to HD 308 S2
- FALSE
- Circuit integrity according to BS 6387 CWZ
- FALSE
- Circuit integrity according to EN 50200 annex E
- FALSE
- Circuit integrity according to BS 8434-2
- FALSE
- Circuit integrity according to BS 8491
- No
- Circuit integrity according to IEC 60331-21
- FALSE
- Flame retardant according to EN 60332-1-2
- TRUE
- Flame retardant according to EN 60332-3-21 (Cat A F/R)
- FALSE
- Flame retardant according to EN 60332-3-22 (Cat A)
- FALSE
- Flame retardant according to EN 60332-3-23 (Cat B)
- FALSE
- Flame retardant according to EN 60332-3-24 (Cat C)
- TRUE
- Flame retardant according to EN 60332-3-25 (Cat D)
- FALSE
- Halogen free according to EN 60754-1
- TRUE
- Halogen free according to EN 60754-2
- FALSE
- Halogen free according to EN 60754-3
- FALSE
