Beskrivning

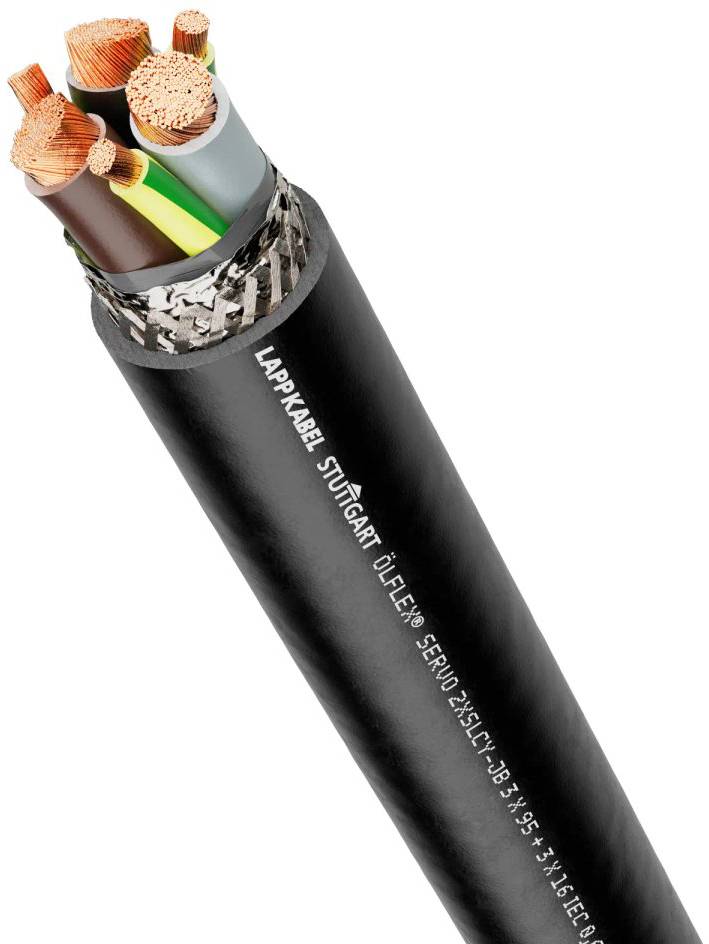

ÖLFLEX® SERVO 2XSLCY-JB 3X120+3G16 Motoranslutningsledning; 3X120+3G16; U 0 /U 0,6/1 kV; PVC; skärmad; UL recognized; flexibel
ÖLFLEX® SERVO 2XSLCY-JB 3X120+3G16 Motoranslutningsledning; 3X120+3G16; U 0 /U 0,6/1 kV; PVC; skärmad; UL recognized; flexibel
- Typ av produkt
- Anslutning
- Ytter-Ø
- 42.3
- Innehåll
- 500
- Nominell spänning
- 1000
- Nominell spänning U0
- 600
- Tillverkarnr.
- 1133626/500
- Typ
- ÖLFLEX® SERVO 2XSLCY-JB 3X120+3G16
- Material core insulation
- Other
- Nominal voltage U
- 1
- Colour outer sheath
- Black
- Material outer sheath
- Polyvinyl chloride (PVC)
- Permitted cable outer temperature after assembling without vibration
- -40-90
- Number of main cores
- 3
- Nominal cross section main conductors
- 120
- Identification main cores
- Colour
- Nominal voltage U0
- 0.6
- Outer diameter approximate
- 42.3
- With protective conductor
- TRUE
- AWG size main conductors
- 0000
- Min. permitted bending radius, moving application/free movement
- 634.5
- Min. permitted bending radius, stationary application/permanent installation
- 169.2
- Specification material outer sheath
- Other
- Cable geometry
- Round
