Beskrivning

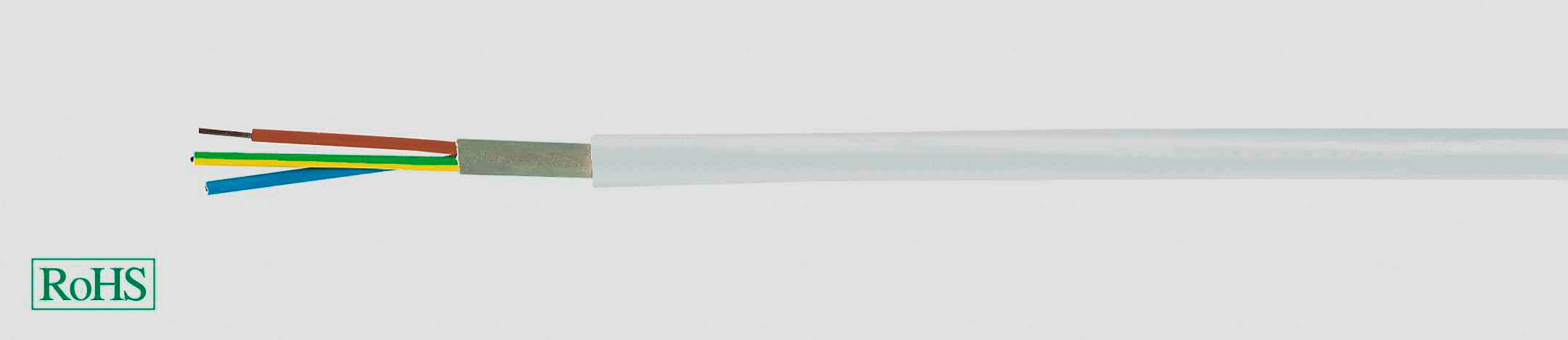

Standard cable for plaster, brickwork and immovable concrete.
Application range For installation on or under the plaster In bricks and concrete, except direct embedding in vibrated or compressed concrete In dry, damp or wet interiors Also suitable for outdoor use if protected against direct sunlightProduct Make-up Bare copper wire conductor Core insulation: Based on PVC Filling compound over the core assembly Outer sheath: Based on PVC
Standard cable for plaster, brickwork and immovable concrete.
Application range For installation on or under the plaster In bricks and concrete, except direct embedding in vibrated or compressed concrete In dry, damp or wet interiors Also suitable for outdoor use if protected against direct sunlightProduct Make-up Bare copper wire conductor Core insulation: Based on PVC Filling compound over the core assembly Outer sheath: Based on PVC
- Typ av produkt
- Installationsledning
- Kabeltyp
- NYM-J
- Antal trådar
- 3
- Tvärsnitt (per tråd)
- 4
- Kabelarea
- 3 G 4 mm²
- Kabel – specifikationer
- PVC-mantel
- Tillverkarfärg
- Grå
- Ytter-Ø
- 12.00
- Innehåll
- 100
- Nominell spänning
- 500
- Nominell spänning U0
- 300
- Böjradie (antal ytterdiameter för fast installation)
- 4
- Förpackad
- Ja
- Metervara
- Nej
- Halogenfri
- Nej
- Skärmad
- Nej
- Tillverkarnr.
- 39074-100
- Isolationsmaterial
- PVC
- RoHS-godkänd
- Ja
- Temperaturområde, varierat (min.)
- +5
- Temperaturområde, varierat (max.)
- +70
- Temperaturområde, fastställt (min.)
- -40
- Temperaturområde, fastställt (max.)
- +70
- Godkännanden
- VDE, EAC
- Typ
- 39074-100
- Partvinnad (del 1)
- Nej
- Partvinnad (del 2)
- Nej
