Beskrivning

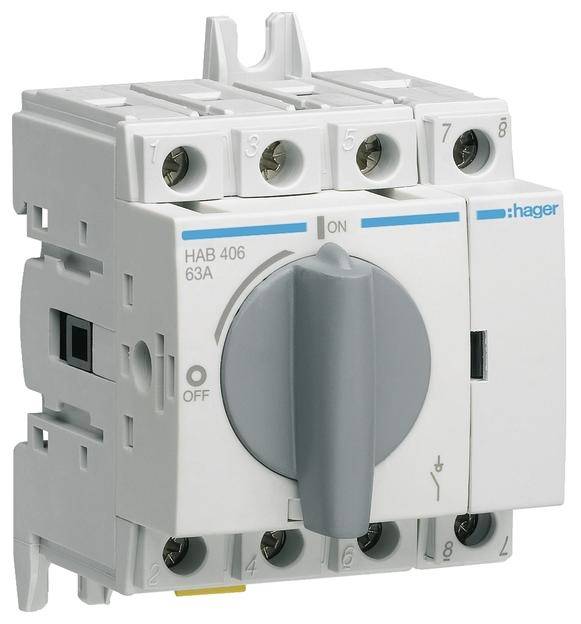

Lastströmbrytare 4-polig 63a för din-skena eller monteringsplatta. Lastfrånskiljare för montering på din-skena eller monteringsplatta, vriddrift direkt på enheten i AV-tillstånd med ett hänglås. Garanterar till- och frånkoppling under belastning och en säkerhetsdelningsfunktion i alla lågspänningskretsar.
Lastströmbrytare 4-polig 63a för din-skena eller monteringsplatta. Lastfrånskiljare för montering på din-skena eller monteringsplatta, vriddrift direkt på enheten i AV-tillstånd med ett hänglås. Garanterar till- och frånkoppling under belastning och en säkerhetsdelningsfunktion i alla lågspänningskretsar.
- Nominell ström – avrundad
- 63
- Nominell ström
- 63
- Tillverkarfärg
- Flerfärgad
- Innehåll
- 1
- Nominell spänning
- 415
- Antal poler
- 4
- Vikt
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Rated permanent current Iu
- 63
- Number of poles
- 4
- Rated operating voltage
- 380-415
- Conditioned rated short-circuit current Iq
- 50
- Degree of protection (IP), front side
- IP20
- Number of auxiliary contacts as change-over contact
- 0
- Number of switches
- 1
- Interlockable
- TRUE
- Motor drive integrated
- FALSE
- Type of electrical connection of main circuit
- Screw connection
- Version as emergency stop installation
- FALSE
- Type of control element
- Short rotary handle
- Version as main switch
- TRUE
- Version as safety switch
- TRUE
- Version as maintenance-/service switch
- TRUE
- Rated operation power at AC-23, 400 V
- 28
- Rated short-time withstand current lcw
- 1.26
- Colour control element
- Grey
- Suitable for floor mounting
- TRUE
- Suitable for front mounting 4-hole
- FALSE
- Suitable for front mounting centre
- FALSE
- Suitable for distribution board installation
- TRUE
- Suitable for intermediate mounting
- FALSE
- Max. rated operation voltage Ue AC
- 415
- Motor drive optional
- FALSE
- Voltage release optional
- FALSE
- Device construction
- Built-in device fixed built-in technique
- Rated permanent current at AC-21, 400 V
- 63
- Switching power at 400 V
- 41
- Version as reversing switch
- FALSE
- Rated permanent current at AC-23, 400 V
- 40
- Degree of protection (NEMA)
- Other
- Typ av produkt
- Lastdelningsbrytare
